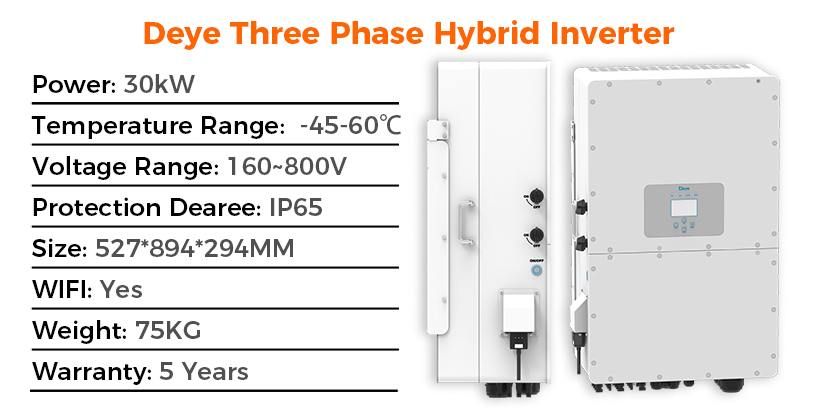

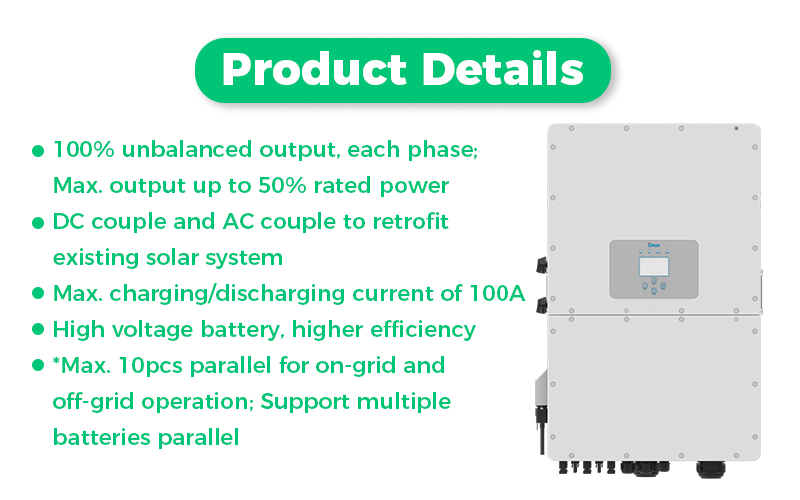

Deye SUN-30K-SG01HP3-EU-BM4 High Voltage Hybrid Inverter
|
Model
|
SUN-30K-SG01HP3-EU-BM3
|
SUN-40K-SG01HP3-EU-BM4
|
SUN-50K-SG01HP3-EU-BM4
|
|
Battery Input Data
|
|||
|
Battery Type
|
Lithium-ion
|
||
|
Battery Voltage Range(V)
|
160~800
|
||
|
Max. Charging Current (A)
|
50+50
|
||
|
Max. Discharging Current (A)
|
50+50
|
||
|
Number of battery input
|
2
|
||
|
Charging Strategy for Li-Ion Battery
|
Self-adaption to BMS
|
||
|
PV String Input Data
|
|||
|
Max. DC Input Power (W)
|
39000
|
52000
|
65000
|
|
Max. DC Input Voltage (V)
|
1000
|
||
|
Start-up Voltage (V)
|
180
|
||
|
MPPT Range (V)
|
150-850
|
||
|
Full Load DC Voltage Range (V)
|
360-850
|
360-850
|
450-850
|
|
Rated DC Input Voltage (V)
|
600
|
||
|
PV Input Current (A)
|
36+36+36
|
36+36+36
|
36+36+36+36
|
|
Max. PV ISC (A)
|
55+55+55
|
50+50+50
|
50+50+50+50
|
|
Number of MPPT / Strings per MPPT
|
3/2
|
4/2
|
4/2
|
|
AC Output Data
|
|||
|
Rated AC Output and UPS Power (W)
|
30000
|
40000
|
50000
|
|
Max. AC Output Power (W)
|
33000
|
44000
|
55000
|
|
AC Output Rated Current (A)
|
45.5/43.5
|
60.7/58
|
75.8/72.5
|
|
Max. AC Output Rated Current (A)
|
50/47.8
|
66.7/63.8
|
83.4/79.7
|
|
Max. Three-phase Unbalanced Output Current
|
60
|
70
|
83.3
|
|
Max. Continuous AC Passthrough (A)
|
200
|
||
|
Peak Power (off grid)
|
1.5 time of rated power, 10 S
|
||
|
Generator input/Smart load
/AC couple current (A) |
45.5 / 200 / 45.5
|
60.7 / 200 / 60.7
|
75.8 / 200 / 75.8
|
|
Power Factor
|
0.8 leading to 0.8 lagging
|
||
|
Output Frequency and Voltage
|
50/60Hz; 3L/N/PE 220/380, 230/400Vac
|
||
|
Grid Type
|
Three Phase
|
||
|
Total Harmonic Distortion (THD)
|
<3% (of nominal power)
|
||
|
DC current injection
|
<0.5% In
|
||
|
Efficiency
|
|||
|
Max. Efficiency
|
97.60%
|
||
|
Euro Efficiency
|
97.00%
|
||
|
MPPT Efficiency
|
99.90%
|
||
|
Protection
|
|||
|
Integrated
|
PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection,Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,Output Shorted Protection, Surge protection
|
||
|
Output Over Voltage Protection
|
DC Type II/AC Type III
|
||
|
Certififications and Standards
|
|||
|
Grid Regulation
|
VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150
|
||
|
Safety EMC / Standard
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
|
||
|
General Data
|
|||
|
Operating Temperature Range (℃)
|
-45~60℃, >45℃ derating
|
||
|
Cooling
|
Smart cooling
|
||
|
Noise (dB)
|
≤65 dB
|
||
|
Communication with BMS
|
RS485; CAN
|
||
|
Weight (kg)
|
75
|
||
|
Size (mm)
|
527W×894H×294D
|
||
|
Protection Degree
|
IP65
|
||
|
Installation Style
|
Wall-mounted
|
||
|
Warranty
|
5 years
|
||
