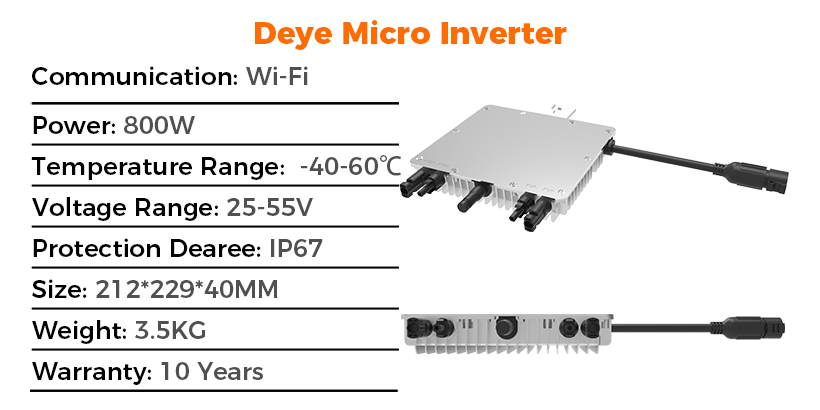

Deye 800W Micro Inverter 2-in-1 SUN-M80G3 -EU-Q0 Grid-Tied 2MPPT

SUN-M80G3-EU-Q0 is a new-generation grid-tied microinverter with intelligent networking and monitoring systems to ensure maximum efficiency.

SUN-M80G3-EU-Q0 is optimized to accommodate today’s high-output PV modules effectively with up to 800W output and dual MPPT.

Also, it supports rapid shutdown applications, ensuring your investment’s safety.

Brand: Deye

Model: SUN-M80G3-EU-Q0

PV Input: 210~500W (2 Pieces)

Max. Input Current: 2 x 13A

Max. Input Voltage: 60V

MPPT Voltage Range: 25V-55V

No. of MPPTs: 2

Dimensions (L x W x D): 212mm × 229mm × 40mm

Weight: 3.5KG

Warranty: 10 Years

Product Detail

Model	SUN-M60G3-EU-Q0	SUN-M80G3-EU-Q0	SUN-M100G3-EU-Q0
Input Data (DC)
Recommended Input Power (STC)	210-420W (2 Pieces)	210-500W (2 Pieces)	210-600W (2 Pieces)
Maximum Input DC Voltage	60V
MPPT Voltage Range	25-55V
Full Load DC Voltage Range (V)	24.5-55V	33-55V	40-55V
Max. DC Short Circuit Current	2×19.5A
Max. Input Current	2×13A
No.of MPP Trackers	2
No.of Strings per MPP Tracker	1
Output Data (AC)
Rated Output Power	600W	800W	1000W
Rated Output Current	2.6A	3.5A	4.4A
Nominal Voltage / Range (this mayvary with grid standards)	230V/ 0.85Un-1.1Un	230V/ 0.85Un-1.1Un	230V/ 0.85Un-1.1Un
Nominal Frequency / Range	50 / 60Hz
Extended Frequency / Range	45-55Hz / 55-65Hz
Power Factor	>0.99
Maximum Units per Branch	8	6	5
Efficiency
CEC Weighted Efficiency	95%
Peak Inverter Efficiency	96.5%
Static MPPT Efficiency	99%
Night Time Power Consumption	50mW
Mechanical Data
Ambient Temperature Range	-40-60℃, >45℃ Derating
Cabinet Size (WxHxD mm)	212×229×40 (Excluding Connectors and Brackets)
Weight (kg)	3.5
Cooling	Free Cooling
Enclosure Environmental Rating	IP67
Features
Communication	WIFI
Grid Connection Standard	VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150
Safety EMC / Standard	UL 1741, IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-2, IEC61000-3-3
Warranty	10 Years
