Deye BOS-G 5kWh 10kWh 40kWh 60kWh Battery High Voltage Lifepo4 Lithium Ion Batteries with Rack

CellChemistry: LiFePO4

Module Energy(kWh): 5.12
Module Nominal Voltage(V): 51.2
Module Capacity(Ah): 100
Cycle Life: 25±2°C, 0.5C/0.5C,EOL70%≥6000
Warranty: 10years
Certification: CE/IEC62619/UL1973/UL9540A/UN38.3



  • Convenient
Quick installation standard of 19-inch embedded designed module is comfortable for installation and maintenance.
  • Safe and reliable
Cathode material is made from LiFePO4 with safety performance and long cycle life, The module has less self-discharge, up to 6 months without charging it on shelf, no memory effect, excellent performance of shallow charge and discharge.
  • Intelligent BMS
It has protection functions including over-discharge, over-charge, over-current and over-high or low temperature. The system can automatically manage charge and discharge state and balance current and voltage of each cell.
  • Eco-friendly
The whole module is non-toxic, non-polluting and environmentally friendly.
  • Flexible configuration
Multiple battery modules can be in parallel for expanding capacity and power. Support USB upgrade, wifi upgrade(optional), remote up grade(Compatible with Deye inverter).
  • Wide temperature
Working temperature range is from -20°C to 55°C, with excellent discharge performance and cycle life.

Product Detail

Product Tags

60kw batterybog-g 5.1 40kw battery

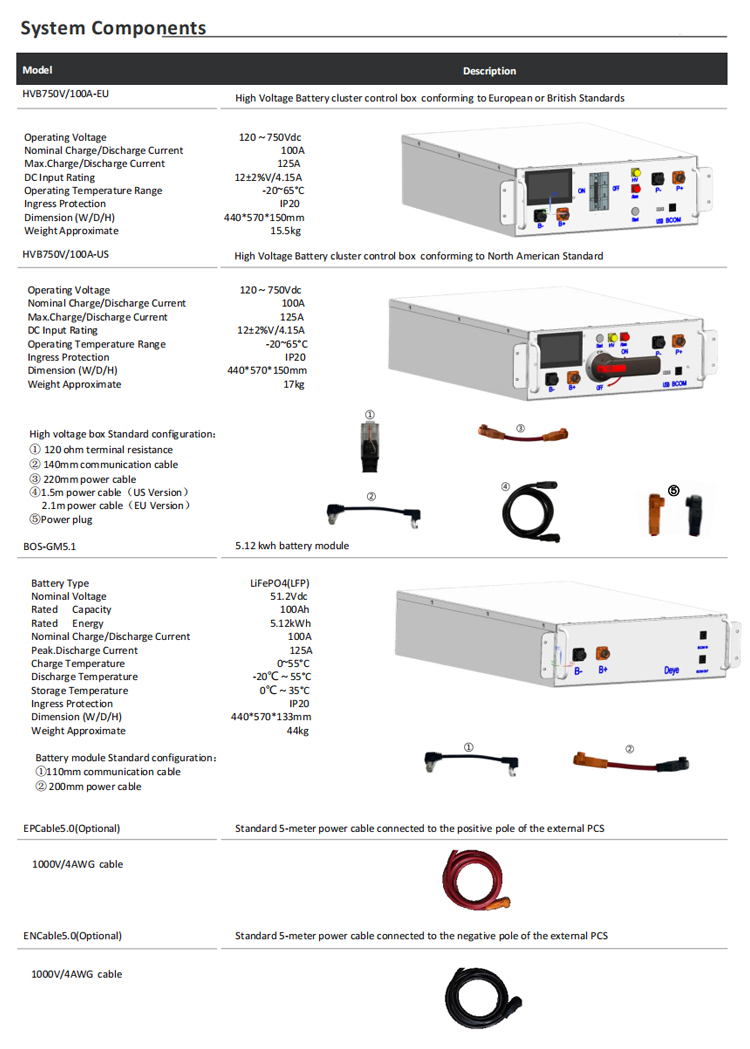

Model
 BOS-G
MainParameter
CellChemistry
 LiFePO4
Module Energy(kWh)
 5.12
Module Nominal Voltage(V)
 51.2
Module Capacity(Ah)
 100
Battery Module Qty in series.(Optional)
3
(Min)
8
(Standard US Cluster)
12
(Standard EU Cluster)
System Nominal Voltage (V)
153.6
409.6
614.4
SystemOperating Voltage(V)
124.8~175.2
332.8~467.2
499.2~700
SystemEnergy(kWh)
15.36
40.96
61.44
System Usable Energy (kWh) 1
13.8
36.86
55.29
Charge/Discharge 2
Current (A)
Recommend
 50
Nominal
 100
Peak Discharge
(2 mins,25°C)
 125
Working Temperature(°C)
 Charge: 0~55/Discharge:-20~55
Status Indicator
Yellow: Battery HighVoltage Power On
Red: Battery SystemAlarm
Communication Port
 CAN2.0/RS485
Humidity
 5~85%RH
Altitude
 ≤2000m
IP Rating of Enclosure
 IP20
Dimension(W/D/H,mm)
 589*590*1640
589*590*2240
Weight Approximate(kg)
 258
434
 628
Installation Location
RackMounting
Storage Temperature(°C)
0~35
Recommend Depth of Discharge
90%
Cycle Life
25±2°C, 0.5C/0.5C,EOL70%≥6000
Warranty3
10years
Certification
CE/IEC62619/UL1973/UL9540A/UN38.3
