Deye 800W Micro Inverter 2-In-1 SUN-M80G3 -EU-Q0 Grid-Tied 2MPPT

SUN-M80G3-EU-Q0 is a new-generation grid-tied microinverter with intelligent networking and monitoring systems to ensure maximum efficiency.

SUN-M80G3-EU-Q0 is optimized to accommodate today’s high-output PV modules effectively with up to 800W output and dual MPPT.

Also, it supports rapid shutdown applications, ensuring your investment’s safety.



  • Brand: Deye
  • Model: SUN-M80G3-EU-Q0
  • PV Input: 210~500W (2 Pieces)
  • Max. Input Current: 2 x 13A
  • Max. Input Voltage: 60V
  • MPPT Voltage Range: 25V-55V

Product Detail

Product Tags

场景图

                                                     Deye is dedicated to providing complete photovoltaic power system solutions, including residential and commercial power plants solutions.
                                                    Also, Deye offers solar energy storage system solutions. Among them, PV grid-connected inverter power range from 1.5-110kW,
                                                    Hybrid inverter 3kW-12kW, and microinverter 300W-2000W.

micro inverter 1

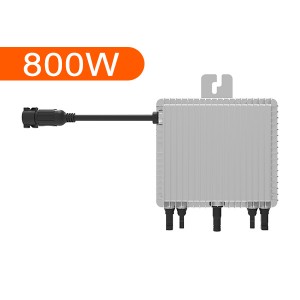

Deye SUN-M80G3-EU-Q0

Output Power: 600W, 800W, 1000W

Maximum Input DC Voltage: 60V

No. of MPPT Trackers: 2

Static MPPT Efficiency: 99%

Ambient Temperature Range: -40~60℃， >45℃ Derating

Communication: WIFI

Size: 212*229*40mm

Weight: 3.5KG

Warranty: 10Years

Model
SUN-M60G3-EU-Q0
SUN-M80G3-EU-Q0
SUN-M100G3-EU-Q0
Input Data (DC)
Recommended Input Power (STC)
210-420W (2 Pieces)
210-500W (2 Pieces)
210-600W (2 Pieces)
Maximum Input DC Voltage
60V
MPPT Voltage Range
25-55V
Full Load DC Voltage Range (V)
24.5-55V
33-55V
40-55V
Max. DC Short Circuit Current
2×19.5A
Max. Input Current
2×13A
No.of MPP Trackers
2
No.of Strings per MPP Tracker
1
Output Data (AC)
Rated Output Power
600W
800W
1000W
Rated Output Current
2.6A
3.5A
4.4A
Nominal Voltage / Range (this mayvary with grid standards)
230V/
0.85Un-1.1Un
230V/
0.85Un-1.1Un
230V/
0.85Un-1.1Un
Nominal Frequency / Range
50 / 60Hz
Extended Frequency / Range
45-55Hz / 55-65Hz
Power Factor
>0.99
Maximum Units per Branch
8
6
5
Efficiency
CEC Weighted Efficiency
95%
Peak Inverter Efficiency
96.5%
Static MPPT Efficiency
99%
Night Time Power Consumption
50mW
Mechanical Data
Ambient Temperature Range
-40-60℃, >45℃ Derating
Cabinet Size (WxHxD mm)
212×229×40 (Excluding Connectors and Brackets)
Weight (kg)
3.5
Cooling
Free Cooling
Enclosure Environmental Rating
IP67
Features
Communication
WIFI
Grid Connection Standard
VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1,
G98, G99, C10-11, UNE217002, NBR16149/NBR16150
Safety EMC / Standard
UL 1741, IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-2, IEC61000-3-3
Warranty
10 Years
