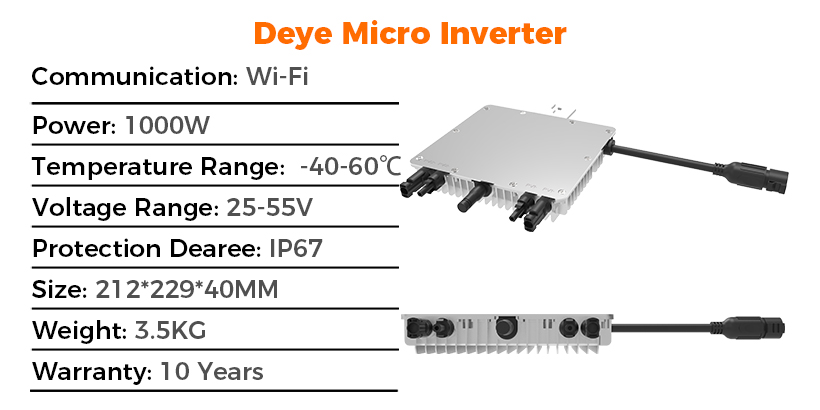

Deye 1000W Micro Inverter 2-In-1 SUN-M100G3 -EU-Q0 Grid-Tied 2MPPT

SUN 1000 G3 is a new-generation grid-tied microinverter with intelligent networking and monitoring systems to ensure maximum efficiency.

SUN 1000 G3 is optimized to accommodate today’s high-output PV modules effectively with up to 1000W output and dual MPPT.

Also, it supports rapid shutdown applications, ensuring your investment’s safety.



  • Brand: Deye
  • Model: SUN-M100G3-EU-Q0
  • PV Input: 210~500W (2 Pieces)
  • Max. Input Current: 2 x 13A
  • Max. Input Voltage: 60V
  • MPPT Voltage Range: 25V-55V
  • No. of MPPTs: 2
  • Dimensions (L x W x D): 212mm × 229mm × 40mm
  • Weight: 3.5KG
  • Warranty: 10 Years

Product Detail

Product Tags

micro inverter特点图1000W参数

Model
SUN-M80G3-EU-Q0
SUN-M100G3-EU-Q0
Input Data (DC)
Recommended Input Power (STC)
210-420W (2 Pieces)
210-500W (2 Pieces)
210-600W (2 Pieces)
Maximum Input DC Voltage
60V
MPPT Voltage Range
25-55V
Full Load DC Voltage Range (V)
24.5-55V
33-55V
40-55V
Max. DC Short Circuit Current
2×19.5A
Max. Input Current
2×13A
No.of MPP Trackers
2
No.of Strings per MPP Tracker
1
Output Data (AC)
Rated Output Power
600W
800W
1000W
Rated Output Current
2.6A
3.5A
4.4A
Nominal Voltage / Range (this mayvary with grid standards)
230V/
0.85Un-1.1Un
230V/
0.85Un-1.1Un
230V/
0.85Un-1.1Un
Nominal Frequency / Range
50 / 60Hz
Extended Frequency / Range
45-55Hz / 55-65Hz
Power Factor
>0.99
Maximum Units per Branch
8
6
5
Efficiency
CEC Weighted Efficiency
95%
Peak Inverter Efficiency
96.5%
Static MPPT Efficiency
99%
Night Time Power Consumption
50mW
Mechanical Data
Ambient Temperature Range
-40-60℃, >45℃ Derating
Cabinet Size (WxHxD mm)
212×229×40 (Excluding Connectors and Brackets)
Weight (kg)
3.5
Cooling
Free Cooling
Enclosure Environmental Rating
IP67
Features
Communication
WIFI
Grid Connection Standard
VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1,
G98, G99, C10-11, UNE217002, NBR16149/NBR16150
Safety EMC / Standard
UL 1741, IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-2, IEC61000-3-3
Warranty
10 Years
